Every calf raise machine looks like it does the same job: push through the balls of your feet, lift the weight, repeat. The difference is one joint. Bend the knee and you shift the work onto one calf muscle. Straighten it and a different one takes over. That single detail decides whether you need a seated calf raise machine, a standing calf raise machine, or both.
This comparison walks through what each machine actually trains, how much floor and ceiling each one eats, what they cost in the Build A Gym catalog right now, and when one machine is enough. It is written for two kinds of buyers at once: people outfitting a home or garage gym, and owners filling out a commercial strength floor.
Quick verdict

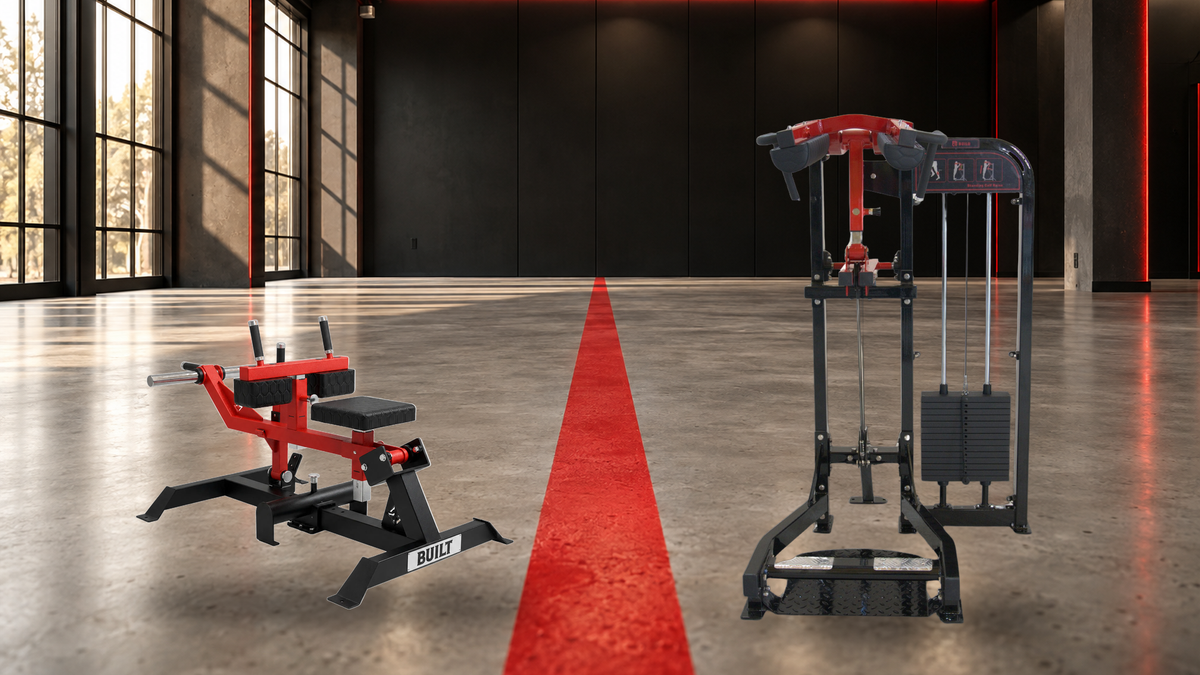

If you only have room or budget for one, a seated calf raise machine is the easier fit for most home gyms: no load on your spine, a small footprint, and a lower price (the BUILT Strength OG Series Seated Calf Raise starts at $1,295 new). Your straight-leg calf work can come from a leg press or a step. A standing calf raise machine earns its spot when you want to load the gastrocnemius heavy and you have the height and floor for a taller frame. Commercial floors should plan on one of each.
The two-muscle problem every calf machine solves differently
Your calf is mainly two muscles. The gastrocnemius is the big, two-headed muscle you can see from behind. It crosses both the knee and the ankle. The soleus sits underneath it, is flatter and wider, and crosses only the ankle.
Because the gastrocnemius crosses the knee, bending the knee puts it on slack. It cannot pull hard from a shortened position, so on a seated calf raise with the knee near 90 degrees, the soleus does most of the lifting. Stand up with the knee straight and the gastrocnemius is stretched and ready to work, so it takes the lead while the soleus still helps.
That is the whole reason both machines exist. One is not a better version of the other. They load different tissue, and a complete lower leg needs both kinds of work somewhere in the week.
Seated vs standing calf raise machine, side by side
The muscle story is above. This table covers the buying side: where the weight sits on your body, how much room the machine needs, and what it costs. Footprints and prices come from current Build A Gym listings.
| What you're comparing | Seated calf raise machine | Standing calf raise machine |
|---|---|---|
| Where the load sits | Across the thighs, just above the knees | On the shoulders and traps through pads |
| Spine loading | None. Good for users with back limits | Compresses the spine under heavy loads |
| Typical size | OG Series: 60" x 32.25" footprint, 36" tall | Compact Series: 54" x 43" footprint, 72" tall |
| Resistance styles we carry | Plate-loaded and selectorized | Plate-loaded and selectorized |
| Entry price right now | $1,295 (OG Series, new) | $2,145 (Hoist ROC-IT, remanufactured) |
| Best fit | Home gyms, tight rooms, lifters protecting the lower back | Athletes, bodybuilding floors, commercial gyms with ceiling height |
When one calf machine is enough
For a home or garage gym, start seated. A plate-loaded seated calf raise is short, light enough to move into a garage, and does not care about ceiling height. The BUILT Strength OG Series Seated Calf Raise weighs 150 lb, starts at 20 lb of resistance, and has a 5.5" adjustable foot block for a deep stretch at the bottom of each rep. It is $1,295 in Ember Fusion or $1,545 in Stealth. It is plate-loaded, so budget for plates if you do not already own them.
You can still cover straight-knee calf work without a second machine. Toes on the bottom edge of a leg press platform, a loaded step, or a Smith machine with a block all hit the gastrocnemius well enough for most home lifters.
Go standing first if your training is gastrocnemius-heavy and you have the room. Think lifters who want heavy straight-leg calf work without fighting a barbell on their back. The BUILT Strength Compact Standing Calf Raise ($2,795, new) is a selectorized unit with adjustable shoulder pads, a 485 lb frame, and a 54" x 43" footprint. At 72" tall it clears a standard 8 ft ceiling with room to spare.
Commercial floors: plan on one of each
On a commercial floor, the question flips. Members expect both, and a single calf station turns into a line. Most well-run strength floors pair a plate-loaded seated calf with a standing machine, then let the leg press pick up overflow.
A few things matter more for facilities than for home buyers:
- Selectorized saves time between users. Moving a pin or a switch beats stripping plates. The Nautilus Impact Standing Calf ($2,395, remanufactured) uses a Lock N Load switch system instead of a pin, with a 260 lb stack.
- Back-friendly options widen your member base. The Cybex Eagle NX Calf ($1,845, remanufactured) is a seated machine that loads through the hips rather than the shoulders, with a 405 lb stack.
- Plate-loaded standing machines take a beating. The Hoist ROC-IT Plate Loaded Standing Calf Raise ($2,145, remanufactured) has a pivoting footplate for a deeper stretch, a 450 lb max exercise load, and built-in storage for 720 lb of plates. Plates are sold separately.
If you are building out a full leg section, browse lower body plate-loaded machines and lower body selectorized machines together so the calf stations match the rest of the line. Our remanufactured strength inventory is where the bigger commercial brands show up at lower prices.
What about a leg press with a calf station?
Combo units are a real option when floor space is the hard limit. A leg press or calf extension combo lets you do straight-knee calf work on the same sled you squat-press on. The Star Trac Instinct Leg Press/Calf Raise ($2,295, remanufactured) is one example. The trade-off is traffic: in a busy gym, nobody wants to wait through someone's leg press sets to do calves. For a home gym where you are the only user, that trade-off mostly disappears.
If you would rather keep the calf station separate but still selectorized and seated, the BUILT Strength Fractal Series Calf Extension ($2,895, new) has a 280 lb stack on a 40" x 69" footprint.
Three setup mistakes that waste a good calf machine
- Skipping the bottom of the rep. The stretch at the bottom is where calf machines earn their money. If the foot block or footplate does not let your heel drop below your toes, you are training half a movement. Adjustable foot blocks and pivoting footplates exist for exactly this reason.
- Setting the pads wrong. On a seated machine, the knee pad should sit snug just above the knee so the thighs cannot rise and steal the rep. On a standing machine, set the shoulder pads so your knees are straight but not jammed at the top.
- Bouncing. Calves are springy. Bouncing out of the bottom lets the tendon do the work. Pause for a beat at the stretch, then drive up.
Calf raise machine FAQ
Do I need both a seated and a standing calf raise machine?
Not in a home gym. Pick one machine and cover the other knee position with a leg press, a step, or a Smith machine. In a commercial gym, plan on both so members are not waiting on a single station.
Which is better for bigger calves, seated or standing?
Neither alone. Standing calf raises emphasize the gastrocnemius, the visible upper calf. Seated calf raises emphasize the soleus underneath it. Training both knee positions gives the most complete lower leg.
Is a seated calf raise easier on your back?
Yes. A seated calf raise machine loads the thighs, not the shoulders, so there is no compression through the spine. That makes it the safer pick for lifters managing back issues.
How much space does a standing calf raise machine need?
Plan for roughly a 4.5 to 5 ft square plus room to step in. The BUILT Strength Compact Standing Calf Raise is 54" x 43" and 72" tall, and the Hoist ROC-IT is 58" x 52.5".
What does a calf raise machine cost?
In the Build A Gym catalog right now, seated calf raise machines start at $1,295 new (BUILT Strength OG Series). Standing calf raise machines start at $2,145 for a remanufactured Hoist ROC-IT and run to $2,795 for the new BUILT Strength Compact Standing Calf Raise.
Want a quote on a seated and standing pair, or help matching calf machines to the rest of your leg line? Email sales@buildagym.com and we will put the numbers together.
